Plant Trailer Range

The IFOR Williams plant trailer range is designed specifically for transporting plant machinery and has been standard equipment for many plant users and plant hire firms since the 1980s. They offer three distinct types of plant trailer; The GP, GX & GH Range.

GH Plant

GH models are of galvanized welded construction with leaf spring suspension ensuring they will withstand tough conditions. The range comprises of four model options; GH64, GH94, GH94BT and GH1054.

The single axle GH64 is compact yet robust providing a neat and convenient trailer that can be towed behind a car, the 1230kg payload is designed for smaller items of plant such as micro-excavators.

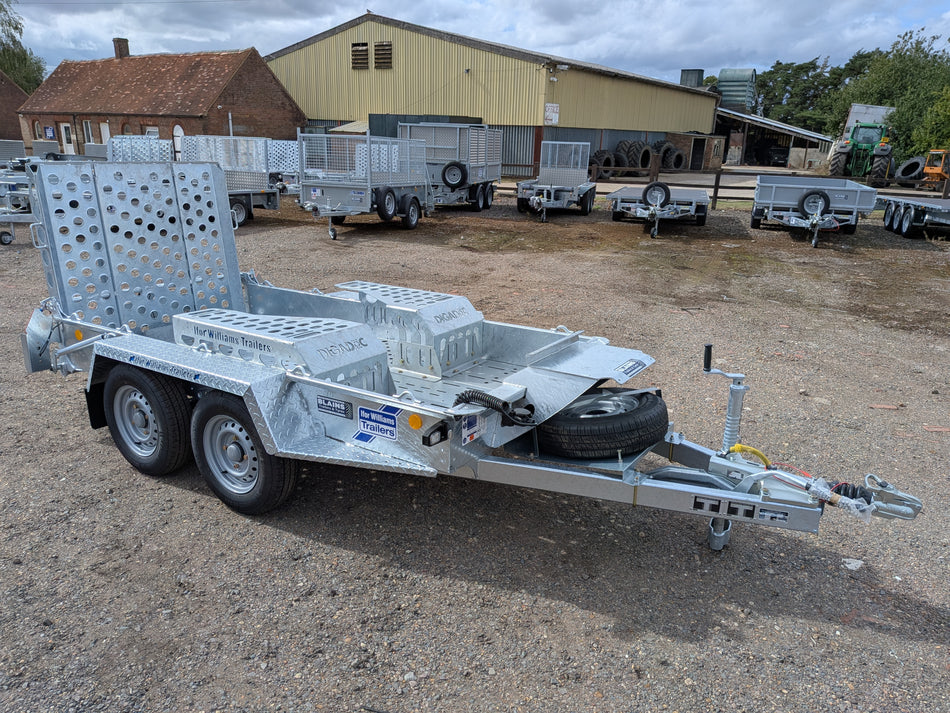

The GH94 comes in two versions – most popular is a beavertailled version on 165R13C tyres – known as GH94BT. Also available is a GH94 with a flat bed on 195/55R10C tyres. The Beavertail feature means that the excellent loading angle of 13⁰ is maintained during loading.

A thick resin coated plywood platform (24mm) makes this trailer particularly suitable for carrying rollers as well as excavators. The 2.79m (9’) length it provides ample loading space behind the rear axle. This enables a full range of mini-excavators to be loaded along with machines with a more central centre of gravity, such as hi-tip dumpers.

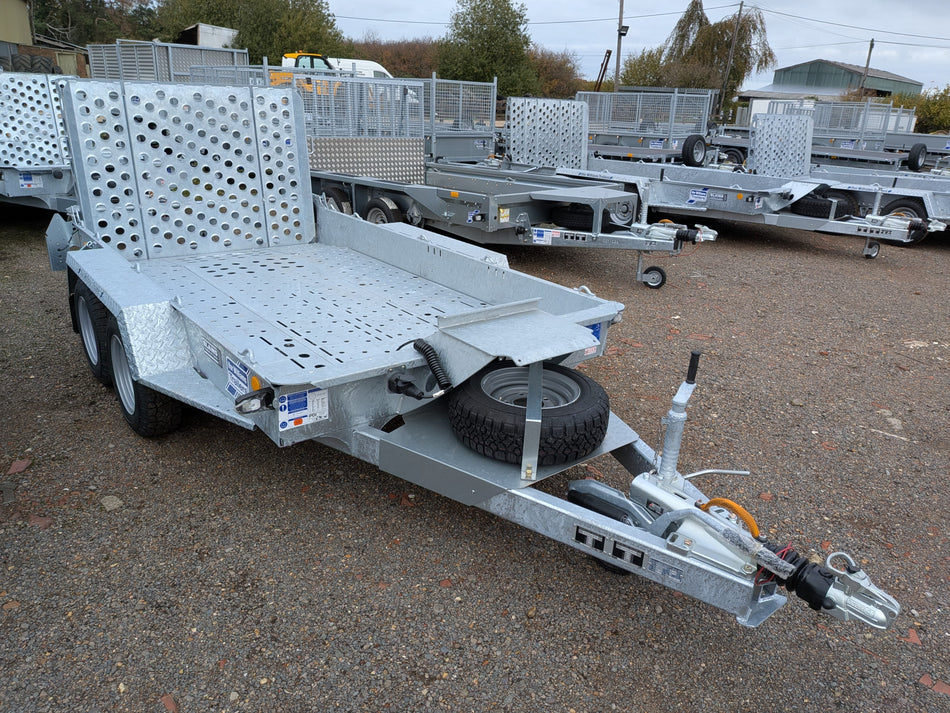

The GH1054 is only available with a beavertailled feature and offers one of the highest payloads ever produced by IFOR Williams Trailers. With its robust, welded construction and heavily treaded 185/70R13C tyres, the GH1054 is a rugged trailer for demanding conditions.

GP Plant

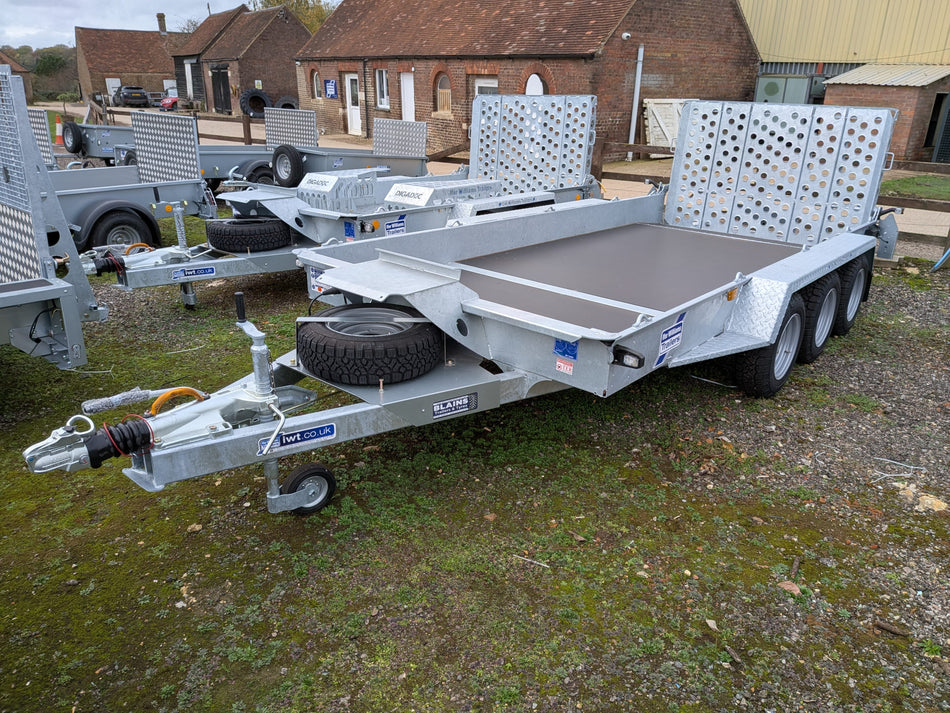

The GP series trailers, widely regarded as the toughest plant trailers in the industry, have an open rectangular steel framework, integral with the chassis. Maximum gross weight of the range is 3500kg. Models range from the smallest GP106 to the largest GP146. Trailers are offered with three tyre options and larger models are also available as tri-axle versions.

GP models are fitted with a tough resin-coated plywood platform. Various options are also available including factory fitted aluminium treadplate floor covering, bolt on ramp knife edge and 1.8m/6’ skids or ramp in place of the standard size of 1.2m/4’. All plant trailer models are fitted with integrated ramp or skid supports. This standard feature ensures trailers are supported whilst being loaded without the need to deploy prop stands.

GX Plant

GX Series trailers are constructed from folded pre-galvanized steel sections and are offered with hinged adjustable skids or a full-width loading ramp plus a built-in bucket rest as standard. Sizes range from the smallest GX84 up to the largest GX126. GX Models are available with maximum gross weights of 2700kg and 3500kg.
