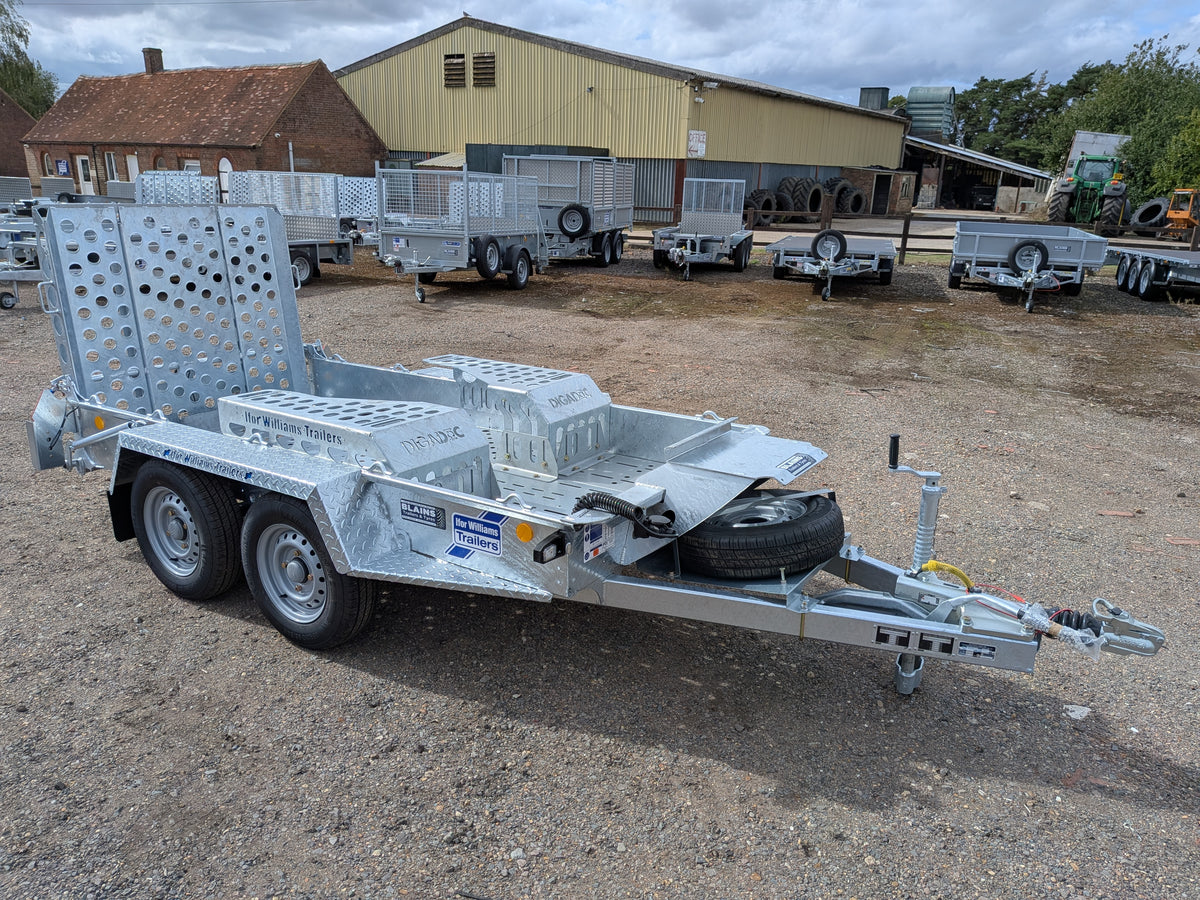

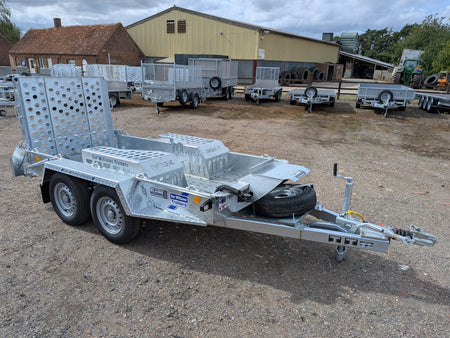

Ifor Williams GH94 Plant Trailer with DIGADOC

DIGADOC® is an award-winning plant positioning and securing system designed to make loading compact tracked machinery safer, faster and more consistent.

Exclusively available on Ifor Williams GH plant trailers, DIGADOC® removes uncertainty from plant transport by guiding machinery into a precise, repeatable position every time it is loaded — improving towing stability and overall transport safety from the moment the tracks meet the trailer.

Engineered for machines up to 2.7 tonnes (subject to trailer gross vehicle weight), DIGADOC® ensures correct alignment, balance and security, even when time is tight or operator experience is limited.

Consistent Positioning for Safe Transport

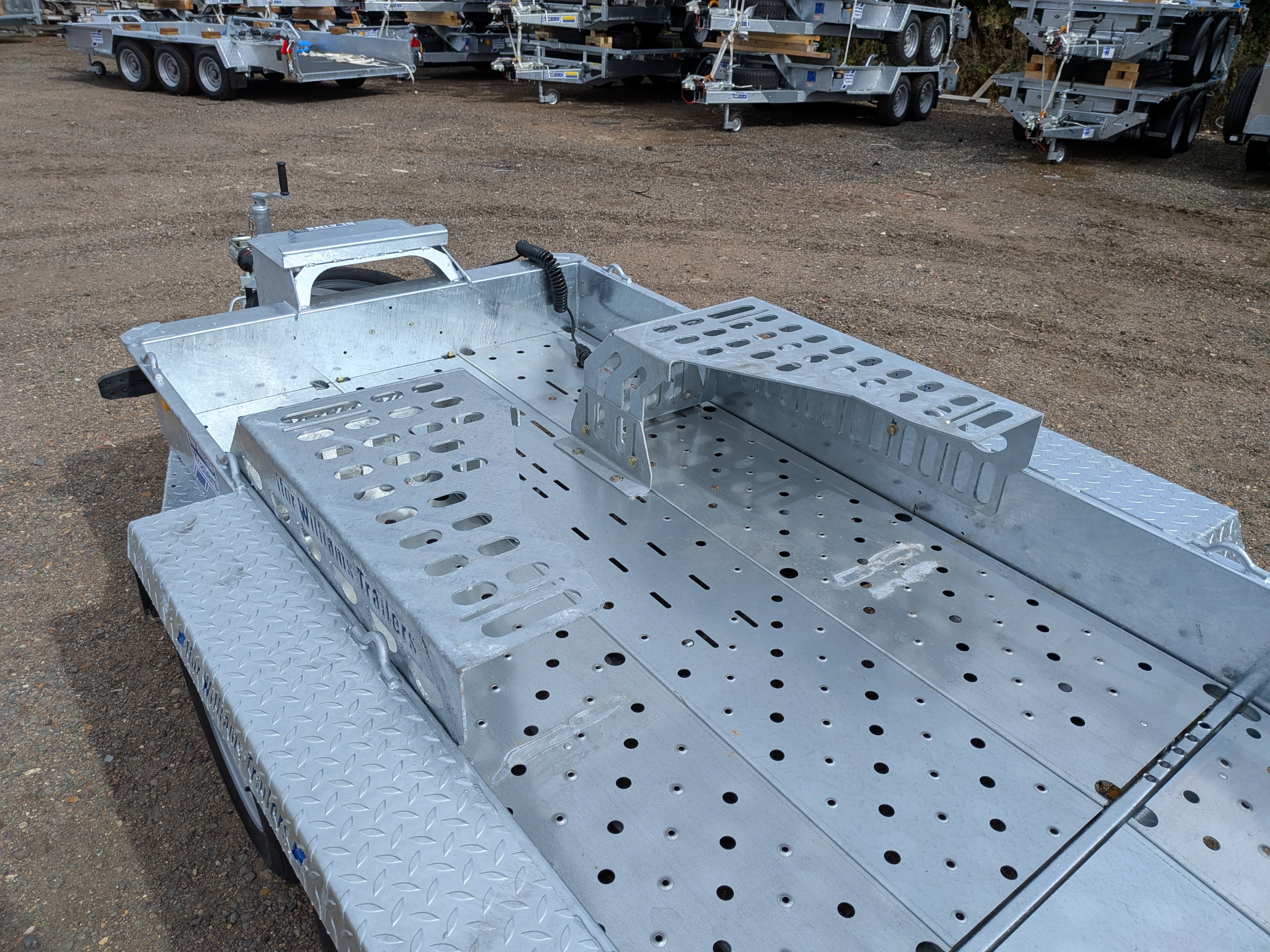

As the machine drives onto the trailer, DIGADOC® cowlings guide the tracks into correct alignment without guesswork. Optional adjustable side guides can be specified to provide additional lateral control during loading, helping centre the machine as it climbs the bed.

Forward movement continues until the machine reaches the correct fore-and-aft position for balanced towing. For additional security in transit, an optional blade stop locates the rear dozer blade to help prevent rearward movement.

When specified with the excavator arm retention kit, DIGADOC® removes the need for traditional tie-down straps for excavators. This significantly reduces manual handling, speeds up loading and unloading, and promotes safer working practices on site.

The result is faster turnaround, reduced risk and consistent, controlled positioning — every time.

Engineered for Demanding Environments

Manufactured from heavy-duty galvanised steel, DIGADOC® is built for long-term durability in tough site conditions.

Its modular design allows both height and longitudinal adjustment to suit different machines. Simple slotted fixings make repositioning quick and straightforward, allowing fleets to adapt the system as operational requirements change.

DIGADOC® is compatible with GH94 and GH1054 plant trailers fitted with steel floors.

Award-Winning Innovation

Developed as a patented safety solution, DIGADOC® has been recognised with the UK Energy Innovation Award for Best Safety Invention.

By controlling positioning and reducing reliance on manual restraint methods, DIGADOC® helps minimise misuse, equipment damage and instability in transit — protecting both the trailer and the machinery it carries.

A Smarter Standard for Plant Transport

Available as a configurable modular system, DIGADOC® can be tailored to suit specific machinery, working environments and operational requirements.

Whether specifying core positioning components or a fully equipped fleet solution, DIGADOC® delivers safer, more consistent and more efficient compact plant transport — every load, every time.

Key DigaDoc & Site Safety Features

• Patented DigaDoc Restraint System: Front-mounted cowl traps the machine's dozer blade and tracks while a secondary locking arm secures the dipper arm, eliminating loose web straps.

• Rapid 60-Second Docking: Designed for high-frequency transport, allowing operators to secure or release mini-diggers rapidly and safely from ground level.

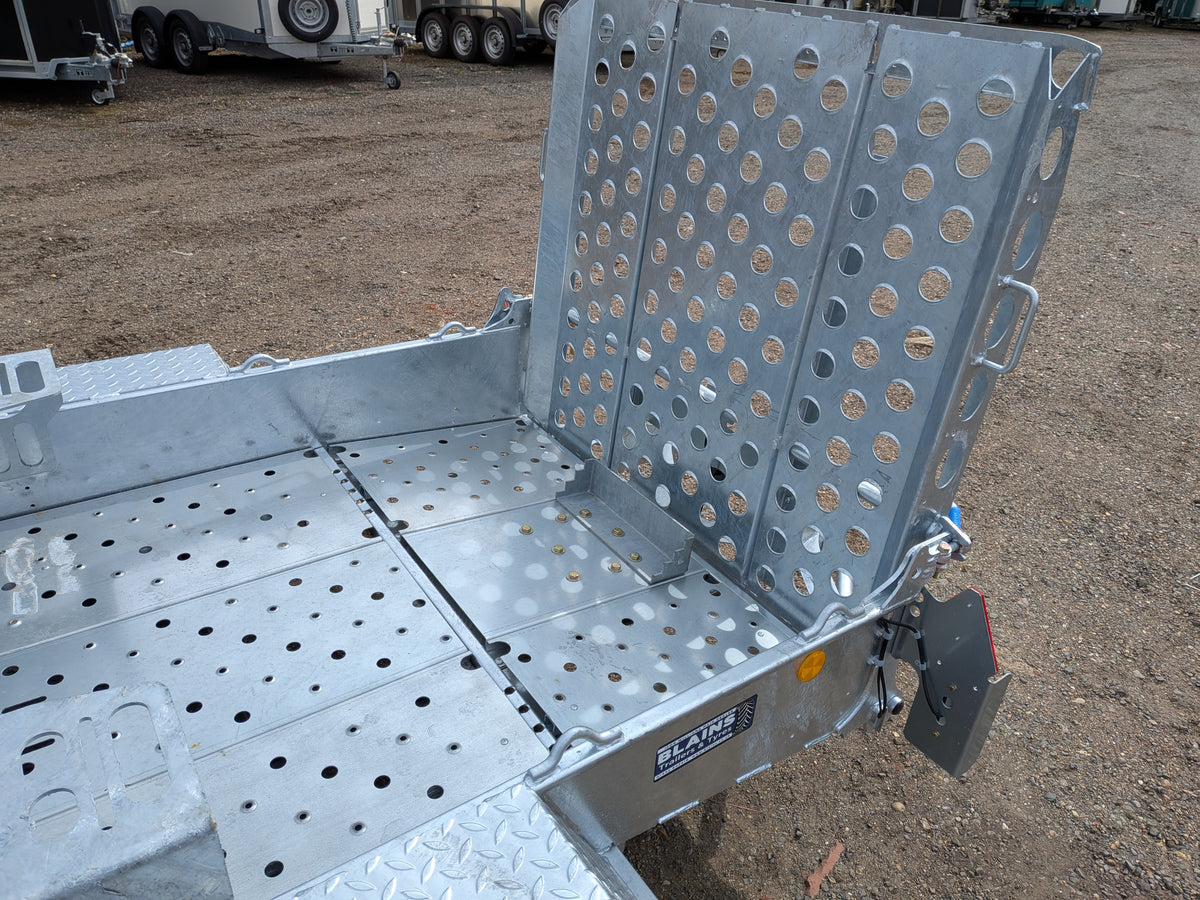

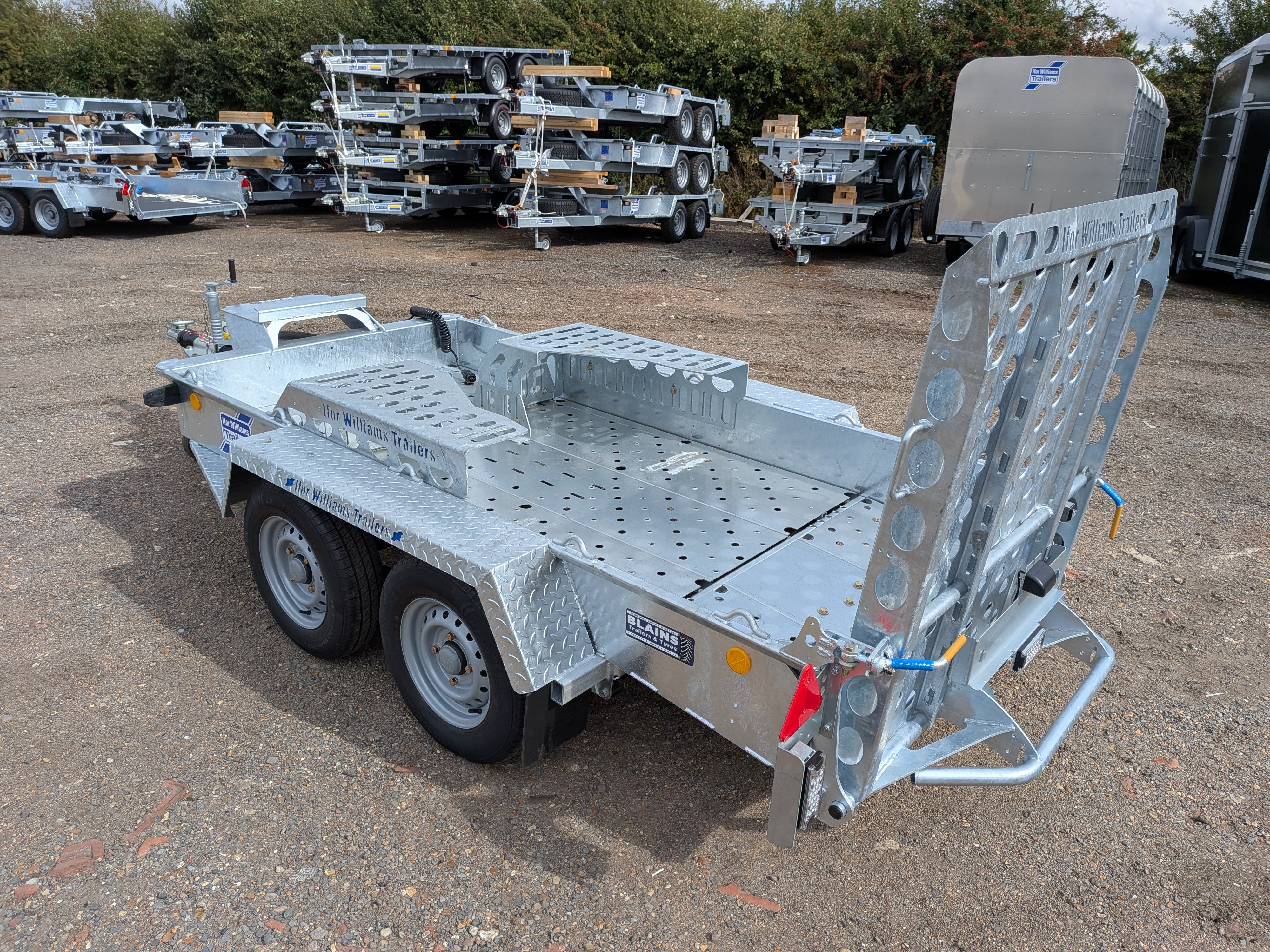

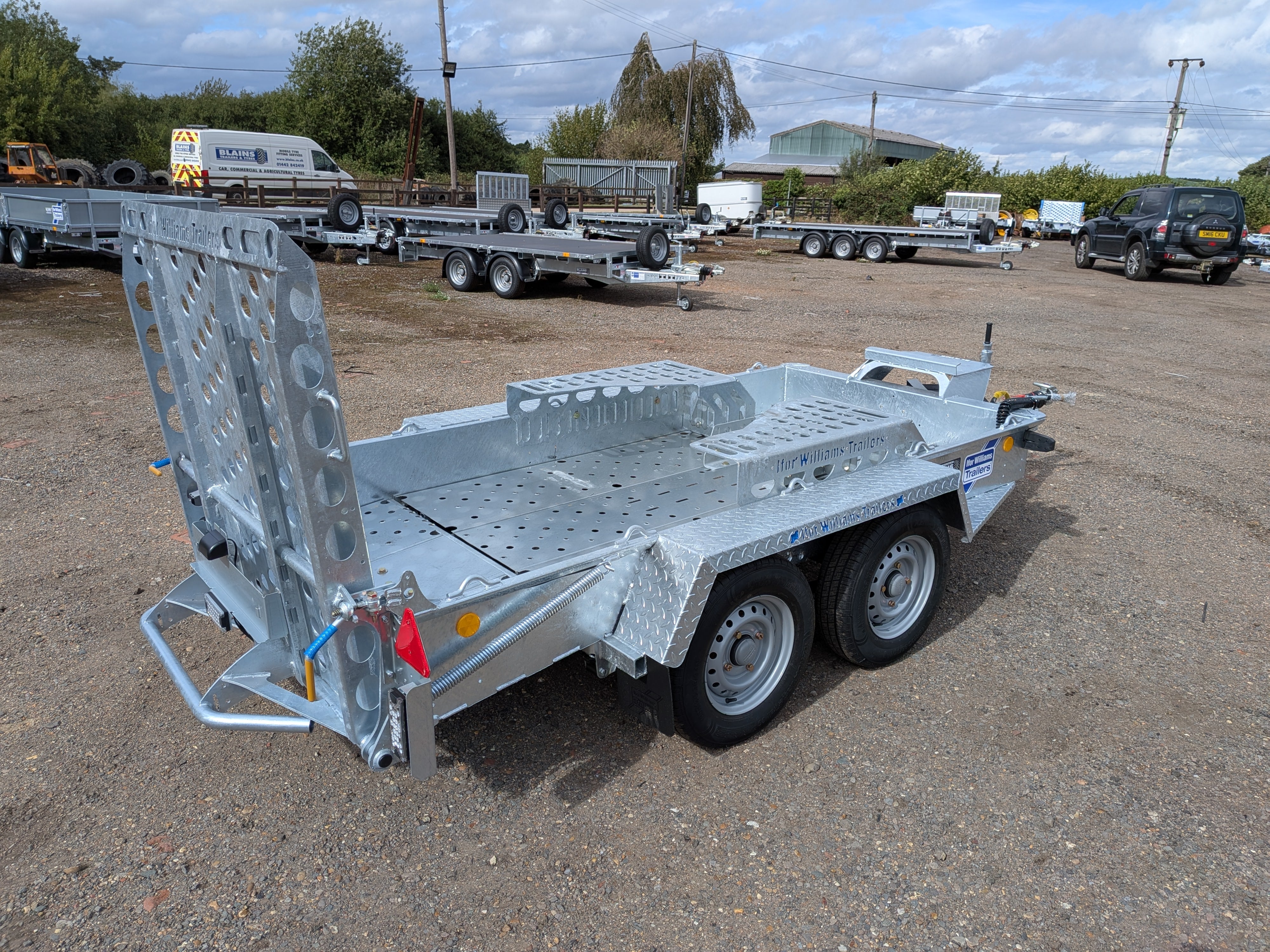

• Ultra-Low Loading Beavertail: Engineered rear profile paired with a full-width loading ramp for smooth drive-on access for low-clearance plant.

Technical Specifications

• Internal Length: 2.79m (9' 1")

• Internal Width: 1.31m (4' 3")

• Gross Vehicle Weight (GVW): 2700kg (2.7 Ton)

• Payload Capacity: 2000kg

• Chassis Construction: Welded steel, hot-dipped galvanised chassis with integrated DigaDoc docking system

• Loading Infrastructure: Factory beavertail with full-width rear loading ramp and prop supports

• Lighting: Factory-fitted LED road lights as standard

Commercial Pricing

• RRP: £3896 + VAT

• Blains Price: £3545 + VAT

Why Buy from Blains Trailers & Tyres?

• Stock & Rolling Allocation: We maintain a regular supply of the GH plant trailer range at our depot. Units are frequently available for prompt yard collection or forward-ordering from upcoming factory shipments, allowing your business to secure essential machinery transport while bypassing standard manufacturer backlogs.

• Geographic Coverage: Based in Great Gaddesden (HP1 3BZ) near Hemel Hempstead, our depot directly serves commercial operators across Hertfordshire, Bedfordshire, and Buckinghamshire. We also act as a primary, trusted supplier for businesses sourcing commercial plant trailers across the wider region to our West and South West, including Oxfordshire and Berkshire.

• Collection Logistics: Handover and collection are arranged directly from our main yard. Our team will ensure the unit is fully prepared, safety-checked, and correctly coupled to your towing vehicle upon arrival.

• Part-Exchange Program: Contact our sales team to arrange a trade-in appraisal and asset valuation against this model.

To confirm current yard availability, reserve an incoming unit, or request a formal part-exchange quotation, please contact the sales office on 01442 842419 or submit an enquiry using the secure form below.
